Home > Hinges & Pivots > Pin & Barrel Hinges > Ives > Edge Guard > Half Wrap > Full Mortise > Electrical Power Transfer > 120" length > Satin Stainless Steel > IVES 715-US32D-120-EPT

IVES 715-US32D-120-EPT 120" Full Mortise Half Wrap Pin and Barrel Continuous Hinge with Electrical Power Transfer - Satin Stainless Steel


IVES 715-US32D-120-EPT

IVES 715-US32D-120-EPT 120" Full Mortise Half Wrap Pin and Barrel Continuous Hinge with Electrical Power Transfer - Satin Stainless Steel

Manufacturer: Ives
Price: $1,158.78






  Order Options:


Indicate custom length required (Optional)
Indicate Dutch Door Top & Bottom Net lengths (eg. 42" top, 42" bottom) (Optional)
Indicate Door Material (eg. metal, wood, aluminum, etc...)
Indicate Frame Material (eg. metal, wood, etc...)
Indicate EPT Cut-Out Location (length from top of hinge to the centerline of EPT cut-out)
Indicate manufacturrer and model of the electrical product being used (eg. Von Duprin EPT2)
Comments (Optional)


  Qty:

  Add To Cart

Availability Information
Standard - ships in 10-15 business days.
Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

Similar Product Video
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
Email Friend
More from Ives
 This item ships from MA.


ives logo

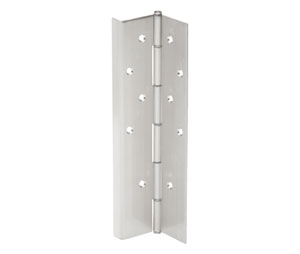

IVES 715-US32D-120-EPT 120" Full Mortise Half Wrap Pin and Barrel Continuous Hinge with Electrical Power Transfer - Satin Stainless Steel

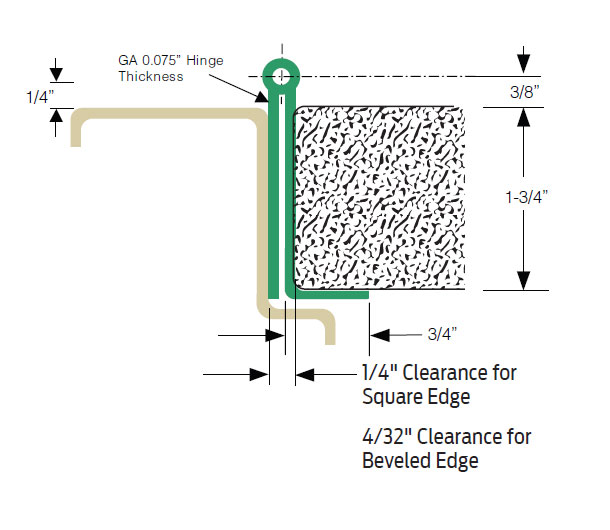

  • Continuous Pin & Barrel Hinge with Electrical Power Transfer
  • Length: 120"
  • Full Mortise, Flush Mounted
  • No inset
  • Half Wrap Edge Guard
  • 1/4" Diameter 304 Stainless Pin with Nylon Split Bearing
  • Material: 14 Gauge Type 304 Stainless Steel
  • Finish: Satin
  • For doors weighing up to 600 lbs.
  • Use for square edge doors.
  • Standard lengths: 83", 85", 95", 120"
  • Custom lengths are available up to 120". Specify your custom length requirements.
  • Standard Mounting Hardware: #10 X 1/2" Self Drilling Self Tapping Screws, #10 X 1" Wood Screws
  • Optional SEC - Security Fasteners Available - Torx Drive
